ATV310HU55N4E

SKU:ATV310HU55N4E

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

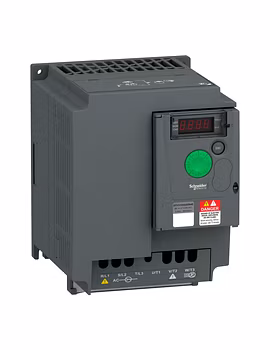

Variable speed drive ATV310 - 5.5 kW - 7.5 hp - 380...460 V - 3 phase
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information

    Main
    range of product
    Easy Altivar 310

    product or component type
    Variable speed drive

    product specific application
    Simple machine

    assembly style
    With heat sink

    device short name
    ATV310

    network number of phases
    Three phase

    [Us] rated supply voltage
    380...460 V - 15...10 %

    motor power kW
    5.5 kW

    motor power hp
    7.5 hp

    noise level
    50 dB

    Complementary
    product destination
    Asynchronous motors

    quantity per set
    Set of 1

    EMC filter
    Without EMC filter

    type of cooling
    Integrated fan

    supply frequency
    50/60 Hz +/- 5 %

    communication port protocol
    Modbus

    connector type
    RJ45 (on front face) for Modbus

    physical interface
    2-wire RS 485 for Modbus

    transmission frame
    RTU for Modbus

    transmission rate
    4800 bit/s
    9600 bit/s
    19200 bit/s
    38400 bit/s

    number of addresses
    1…247 for Modbus

    communication service
    Read holding registers (03) 29 words
    Write single register (06) 29 words
    Write multiple registers (16) 27 words
    Read/write multiple registers (23) 4/4 words
    Read device identification (43)

    line current
    14.3 A

    apparent power
    11.4 kVA

    prospective line Isc
    5 kA

    continuous output current
    12.6 A at 4 kHz

    maximum transient current
    18.9 A for 60 s

    power dissipation in W
    141.54 W at In

    speed drive output frequency
    0.5…400 Hz

    nominal switching frequency
    4 kHz

    switching frequency
    2...12 kHz adjustable

    speed range
    1…20

    transient overtorque
    170…200 % of nominal motor torque depending on drive rating and type of motor

    braking torque
    Up to 150 % of nominal motor torque with braking resistor at high inertia
    Up to 70 % of nominal motor torque without braking resistor

    asynchronous motor control profile
    Energy saving ratio
    Quadratic voltage/frequency ratio
    Sensorless flux vector control

    motor slip compensation
    Adjustable
    Preset in factory

    output voltage
    380...460 V three phase

    electrical connection
    Terminal, clamping capacity: 4 mm² (L1, L2, L3, PA/+, PB, U, V, W)

    tightening torque
    1.2…1.4 N.m

    insulation
    Electrical between power and control

    supply
    Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protection
    Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection

    analogue input number
    1

    analogue input type
    Configurable current AI1 0...20 mA 250 Ohm
    Configurable voltage AI1 0...10 V 30 kOhm
    Configurable voltage AI1 0...5 V 30 kOhm

    discrete input number
    4

    discrete input type
    Programmable LI1...LI4 24 V 18...30 V

    discrete input logic
    Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm
    Positive logic (source), 0...< 5 V (state 0), > 11 V (state 1)

    sampling duration
    10 ms for analogue input
    20 ms, tolerance +/- 1 ms for logic input

    linearity error
    +/- 0.3 % of maximum value for analogue input

    analogue output number
    1

    analogue output type
    AO1 software-configurable voltage: 0...10 V, impedance: 470 Ohm, resolution 8 bits
    AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits

    discrete output number
    2

    discrete output type
    Logic output LO+, LO-
    Protected relay output R1A, R1B, R1C 1 C/O

    minimum switching current
    5 mA at 24 V DC for logic relay

    maximum switching current
    2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay
    2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay
    3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay
    4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay

    acceleration and deceleration ramps
    Linear from 0...999.9 s
    U
    S

    braking to standstill
    By DC injection, <30 s

    protection type
    Line supply overvoltage
    Line supply undervoltage
    Overcurrent between output phases and earth
    Overheating protection
    Short-circuit between motor phases
    Against input phase loss in three-phase
    Thermal motor protection via the drive by continuous calculation of I²t

    frequency resolution
    Analog input: converter A/D, 10 bits
    Display unit: 0.1 Hz

    time constant
    20 ms +/- 1 ms for reference change

    operating position
    Vertical +/- 10 degree

    height
    151 mm

    width
    140 mm

    depth
    184 mm

    net weight
    1.8 kg

    Environment
    electromagnetic compatibility
    Electrical fast transient/burst immunity test - test level: level 4 conforming to EN/IEC 61000-4-4
    Electrostatic discharge immunity test - test level: level 3 conforming to EN/IEC 61000-4-2
    Immunity to conducted disturbances - test level: level 3 conforming to EN/IEC 61000-4-6
    Radiated radio-frequency electromagnetic field immunity test - test level: level 3 conforming to EN/IEC 61000-4-3
    Voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11
    Surge immunity test - test level: level 3 conforming to EN/IEC 61000-4-5

    standards
    EN/IEC 61800-3
    EN/IEC 61800-5-1

    IP degree of protection
    IP20 without blanking plate on upper part
    IP41 top

    pollution degree
    2 conforming to EN/IEC 61800-5-1

    environmental characteristic
    Dust pollution resistance class 3S2 conforming to EN/IEC 60721-3-3
    Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3

    shock resistance
    15 gn conforming to EN/IEC 60068-2-27 for 11 ms

    relative humidity
    5…95 % without condensation conforming to IEC 60068-2-3
    5…95 % without dripping water conforming to IEC 60068-2-3

    ambient air temperature for storage
    -25…70 °C

    ambient air temperature for operation
    -10…55 °C without derating
    55…60 °C protective cover from the top of the drive removed with current derating 2.2 % per °C

    operating altitude
    <= 1000 m without derating

    Packing Units
    Unit Type of Package 1
    PCE

    Number of Units in Package 1
    1

    Package 1 Weight
    2.27 kg

    Package 1 Height
    19 cm

    Package 1 width
    19 cm

    Package 1 Length
    23 cm
