ATV61HC25Y

SKU:ATV61HC25Y

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

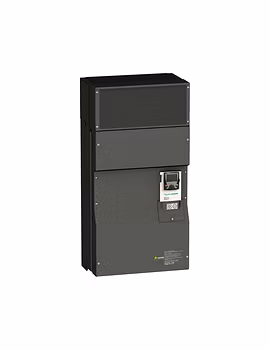

Variable speed drive ATV61 - 250kW - 690V - without EMC filter
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information

    Main
    range of product
    Altivar 61

    product or component type
    Variable speed drive

    product specific application
    Pumping and ventilation machine

    component name
    ATV61

    motor power kW
    200 kW, 3 phases at 500 V
    250 kW, 3 phases at 690 V

    motor power hp
    250 hp, 3 phases at 575 V

    power supply voltage
    500...690 V - 15...10 %

    supply number of phases
    3 phases

    line current
    250 A for 600 V 3 phases 200 kW / 250 hp
    257 A for 690 V 3 phases 200 kW / 250 hp
    277 A for 500 V 3 phases 200 kW / 250 hp

    EMC filter
    Level 3 EMC filter

    assembly style
    With heat sink

    maximum prospective line Isc
    35 kA for 3 phases

    maximum transient current
    374.4 A for 60 s, 3 phases

    nominal switching frequency
    2.5 kHz

    switching frequency
    2.5...4.9 kHz adjustable
    2.5...4.9 kHz with derating factor

    asynchronous motor control
    Flux vector control without sensor, standard
    Voltage/frequency ratio, 2 points
    Voltage/frequency ratio, 5 points
    Voltage/frequency ratio - Energy Saving, quadratic U/f

    synchronous motor control profile
    Vector control without sensor, standard

    communication port protocol
    Modbus
    CANopen

    type of polarization
    No impedance for Modbus

    option card
    Communication card for APOGEE FLN
    Communication card for BACnet
    Communication card for CC-Link
    Controller inside programmable card
    Communication card for DeviceNet
    Communication card for Ethernet/IP
    Communication card for Fipio
    I/O extension card
    Communication card for Interbus-S
    Communication card for LonWorks
    Communication card for METASYS N2
    Communication card for Modbus Plus
    Communication card for Modbus TCP
    Communication card for Modbus/Uni-Telway
    Multi-pump card
    Communication card for Profibus DP
    Communication card for Profibus DP V1

    Complementary
    product destination
    Asynchronous motors
    Synchronous motors

    power supply voltage limits
    425…759 V

    power supply frequency
    50...60 Hz - 5...5 %

    power supply frequency limits
    47.5...63 Hz

    continuous output current
    242 A at 2.5 kHz, 575 V - 3 phases
    290 A at 2.5 kHz, 690 V - 3 phases
    312 A at 2.5 kHz, 500 V - 3 phases

    output frequency
    0.1…500 Hz

    speed range
    1…100 in open-loop mode, without speed feedback

    speed accuracy
    +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback

    torque accuracy
    +/- 15 % in open-loop mode, without speed feedback

    transient overtorque
    130 % of nominal motor torque +/- 10 % for 60 s

    braking torque
    <= 125 % with braking resistor
    30 % without braking resistor

    regulation loop
    Frequency PI regulator

    motor slip compensation
    Can be suppressed
    Automatic whatever the load
    Not available in voltage/frequency ratio (2 or 5 points)
    Adjustable

    diagnostic
    1 LED (red)drive voltage:

    output voltage
    <= power supply voltage

    electrical isolation
    Between power and control terminals

    type of cable for mounting in an enclosure
    With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC
    With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC
    Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC
    Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR

    electrical connection
    Terminal 2.5 mm² / AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
    Terminal 4 x 185 mm² / 3 x 350 kcmil (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)
    Terminal 4 x 185 mm² / 3 x 350 kcmil (PC/-, PA/+)

    tightening torque
    0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
    41 N.m, 360 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)
    41 N.m, 360 lb.in (PC/-, PA/+)

    supply
    Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC, +/- 5 %, <10 mA with overload and short-circuit protection
    Internal supply: 24 V DC (21…27 V), <200 mA with overload and short-circuit protection
    External supply: 24 V DC (19…30 V)

    analogue input number
    2

    analogue input type
    AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign
    AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits
    AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits

    sampling time
    2 ms +/- 0.5 ms (AI1-/Al1+) - analog input
    2 ms +/- 0.5 ms (Al2) - analog input
    2 ms +/- 0.5 ms (AO1) - analog output
    2 ms +/- 0.5 ms (LI1...LI5) - discrete input
    2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input

    absolute accuracy precision
    +/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C
    +/- 0.6 % (AI2) for a temperature variation 60 °C
    +/- 1 % (AO1) for a temperature variation 60 °C

    linearity error
    +/- 0.15 % of maximum value (AI1-/Al1+)
    +/- 0.15 % of maximum value (AI2)
    +/- 0.2 % (AO1)

    analogue output number
    1

    analogue output type
    AO1 software-configurable current, analogue output range 0...20 mA, impedance: 500 Ohm, resolution 10 bits
    AO1 software-configurable voltage, analogue output range 0...10 V DC, impedance: 470 Ohm, resolution 10 bits
    AO1 software-configurable logic output 10 V, 20 mA

    discrete output number
    2

    discrete output type
    Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
    Configurable relay logic: (R2A, R2B) NO - 100000 cycles

    maximum response time
    <= 100 ms in STO (Safe Torque Off)
    R1A, R1B, R1C <= 7 ms, tolerance +/- 0.5 ms
    R2A, R2B <= 7 ms, tolerance +/- 0.5 ms

    minimum switching current
    3 mA at 24 V DC for configurable relay logic

    maximum switching current
    R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms
    R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms
    R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms
    R1, R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms

    discrete input number
    7

    discrete input type
    Programmable (LI1...LI5)24 V DC (<= 30 V), with level 1 PLC - 3500 Ohm
    Switch-configurable (LI6)24 V DC (<= 30 V), with level 1 PLC - 3500 Ohm
    Switch-configurable PTC probe (LI6)0…6 probes - 1500 Ohm
    Safety input (PWR)24 V DC (<= 30 V) - 1500 Ohm

    discrete input logic
    Negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)
    Positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)
    Negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)
    Positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)

    acceleration and deceleration ramps
    Linear adjustable separately from 0.01 to 9000 s
    Automatic adaptation of ramp if braking capacity exceeded, by using resistor
    S, U or customized

    braking to standstill
    By DC injection

    protection type
    Against exceeding limit speed: drive
    Against input phase loss: drive
    Break on the control circuit: drive
    Input phase breaks: drive
    Line supply overvoltage: drive
    Line supply undervoltage: drive
    Overcurrent between output phases and earth: drive
    Overheating protection: drive
    Overvoltages on the DC bus: drive
    Power removal: drive
    Short-circuit between motor phases: drive
    Thermal protection: drive
    Motor phase break: motor
    Power removal: motor
    Thermal protection: motor

    insulation resistance
    > 1 mOhm 500 V DC for 1 minute to earth

    frequency resolution
    Analog input: 0.024/50 Hz
    Display unit: 0.1 Hz

    connector type
    1 RJ45 (on front face) for Modbus
    1 RJ45 (on terminal) for Modbus
    Male SUB-D 9 on RJ45 for CANopen

    physical interface
    2-wire RS 485 for Modbus

    transmission frame
    RTU for Modbus

    transmission rate
    4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal
    9600 bps, 19200 bps for Modbus on front face
    20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen

    data format
    8 bits, 1 stop, even parity for Modbus on front face
    8 bits, odd even or no configurable parity for Modbus on terminal

    number of addresses
    1…127 for CANopen
    1…247 for Modbus

    method of access
    Slave CANopen

    marking
    CE

    operating position
    Vertical +/- 10 degree

    net weight
    181 kg

    width
    595 mm

    height
    1190 mm

    depth
    377 mm

    Environment
    noise level
    77 dB conforming to 86/188/EEC

    dielectric strength
    3110 V DC between earth and power terminals
    5345 V DC between control and power terminals

    electromagnetic compatibility
    Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
    Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
    Voltage dips and interruptions immunity test conforming to IEC 61000-4-11

    standards
    EN 61800-3 environments 1 category C3
    EN/IEC 61800-3
    EN 55011 class A group 2
    IEC 60721-3-3 class 3C2
    EN 61800-3 environments 2 category C3
    UL Type 1
    EN/IEC 61800-5-1

    product certifications
    UL
    GOST
    DNV
    CSA
    NOM 117
    C-Tick

    pollution degree
    3 conforming to EN/IEC 61800-5-1
    3 conforming to UL 840

    degree of proctection
    IP41 on upper part conforming to EN/IEC 60529
    IP41 on upper part conforming to EN/IEC 61800-5-1
    IP54 on lower part conforming to EN/IEC 60529
    IP54 on lower part conforming to EN/IEC 61800-5-1
    IP00 conforming to EN/IEC 60529
    IP00 conforming to EN/IEC 61800-5-1
    IP30 on side parts conforming to EN/IEC 60529
    IP30 on side parts conforming to EN/IEC 61800-5-1
    IP30 on the front panel conforming to EN/IEC 60529
    IP30 on the front panel conforming to EN/IEC 61800-5-1

    vibration resistance
    0.6 gn (f= 10…200 Hz) conforming to EN/IEC 60068-2-6
    1.5 mm peak to peak (f= 3…10 Hz) conforming to EN/IEC 60068-2-6

    shock resistance
    4 gn for 11 ms conforming to EN/IEC 60068-2-27

    relative humidity
    5…95 % without condensation conforming to IEC 60068-2-3
    5…95 % without dripping water conforming to IEC 60068-2-3

    ambient air temperature for operation
    -10…45 °C (without derating)
    45…60 °C (with derating factor)

    ambient air temperature for storage
    -25…70 °C

    operating altitude
    <= 1000 m without derating
    1000...2260 m with current derating 1 % per 100 m

    Packing Units
    Unit Type of Package 1
    PCE

    Number of Units in Package 1
    1

    Package 1 Weight
    183.5 kg

    Package 1 Height
    53.5 cm

    Package 1 width
    64 cm

    Package 1 Length
    129.5 cm

    Unit Type of Package 2
    PAL

    Number of Units in Package 2
    1

    Package 2 Weight
    183.5 kg

    Package 2 Height
    53.5 cm

    Package 2 width
    129.5 cm

    Package 2 Length
    64 cm

    Offer Sustainability
    Sustainable offer status
    Green Premium product

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

    Contractual warranty
    Warranty
    18 months
