ATV61HC63N4D

SKU:ATV61HC63N4D

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

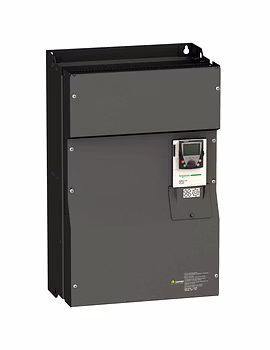

Variable speed drive ATV61 - 560kW 800HP - 380...480V - IP20 - wo DC choke
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information

    Main
    range of product
    Altivar 61

    product or component type
    Variable speed drive

    product specific application
    Pumping and ventilation machine

    component name
    ATV61

    motor power kW
    560 kW, 3 phases at 380...480 V
    630 kW, 3 phases at 380...480 V

    motor power hp
    800 hp, 3 phases at 380...480 V
    900 hp, 3 phases at 380...480 V

    power supply voltage
    380...480 V - 15...10 %

    supply number of phases
    3 phases

    line current
    1091 A for 380 V 3 phases 630 kW / 900 hp
    858 A for 480 V 3 phases 560 kW / 800 hp
    964 A for 480 V 3 phases 630 kW / 900 hp
    978 A for 380 V 3 phases 560 kW / 800 hp

    EMC filter
    Level 3 EMC filter

    variant
    Without DC choke

    assembly style
    With heat sink

    apparent power
    718 kVA at 380 V 3 phases 630 kW / 900 hp
    643.6 kVA at 380 V 3 phases 560 kW / 800 hp

    maximum prospective line Isc
    50 kA for 3 phases

    maximum transient current
    1425.6 A for 60 s, 3 phases

    nominal switching frequency
    2.5 kHz

    switching frequency
    2...8 kHz adjustable
    2.5...8 kHz with derating factor

    asynchronous motor control
    Voltage/frequency ratio, 5 points
    Flux vector control without sensor, standard
    Voltage/frequency ratio, 2 points
    Voltage/frequency ratio - Energy Saving, quadratic U/f

    synchronous motor control profile
    Vector control without sensor, standard

    communication port protocol
    CANopen
    Modbus

    type of polarization
    No impedance for Modbus

    option card
    Communication card for APOGEE FLN
    Communication card for BACnet
    Communication card for CC-Link
    Controller inside programmable card
    Communication card for DeviceNet
    Communication card for Ethernet/IP
    Communication card for Fipio
    I/O extension card
    Communication card for Interbus-S
    Communication card for LonWorks
    Communication card for METASYS N2
    Communication card for Modbus Plus
    Communication card for Modbus TCP
    Communication card for Modbus/Uni-Telway
    Multi-pump card
    Communication card for Profibus DP
    Communication card for Profibus DP V1

    Complementary
    product destination
    Asynchronous motors
    Synchronous motors

    power supply voltage limits
    323…528 V

    power supply frequency
    50...60 Hz - 5...5 %

    power supply frequency limits
    47.5...63 Hz

    continuous output current
    1188 A at 2.5 kHz, 380 V - 3 phases
    1188 A at 2.5 kHz, 460 V - 3 phases

    output frequency
    0.1…500 Hz

    speed range
    1…100 in open-loop mode, without speed feedback

    speed accuracy
    +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback

    torque accuracy
    +/- 15 % in open-loop mode, without speed feedback

    transient overtorque
    130 % of nominal motor torque +/- 10 % for 60 s

    braking torque
    <= 125 % with braking resistor
    30 % without braking resistor

    regulation loop
    Frequency PI regulator

    motor slip compensation
    Not available in voltage/frequency ratio (2 or 5 points)
    Automatic whatever the load
    Adjustable
    Can be suppressed

    diagnostic
    1 LED (red)drive voltage:

    output voltage
    <= power supply voltage

    electrical isolation
    Between power and control terminals

    type of cable for mounting in an enclosure
    With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC
    With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC
    Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC
    Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR

    electrical connection
    Terminal 2.5 mm² / AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
    Terminal 8 x 185 mm² / 5 x 500 kcmil (PC/-, PO, PA/+)
    Terminal 2 x 4 x 185 mm² / 2 x 3 x 500 kcmil (R/L1.1, S/L2.1, T/L3.1, R/L1.2, S/L2.2, T/L3.2)
    Terminal 6 x 185 mm² / 5 x 500 kcmil (U/T1, V/T2, W/T3)

    tightening torque
    0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
    41 N.m, 360 lb.in (PC/-, PO, PA/+)
    41 N.m, 360 lb.in (R/L1.1, S/L2.1, T/L3.1, R/L1.2, S/L2.2, T/L3.2)
    41 N.m, 360 lb.in (U/T1, V/T2, W/T3)

    supply
    Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC, +/- 5 %, <10 mA with overload and short-circuit protection
    Internal supply: 24 V DC (21…27 V), <200 mA with overload and short-circuit protection
    External supply: 24 V DC (19…30 V)

    analogue input number
    2

    analogue input type
    AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign
    AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits
    AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits

    sampling time
    2 ms +/- 0.5 ms (AI1-/Al1+) - analog input
    2 ms +/- 0.5 ms (Al2) - analog input
    2 ms +/- 0.5 ms (AO1) - analog output
    2 ms +/- 0.5 ms (LI1...LI5) - discrete input
    2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input

    absolute accuracy precision
    +/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C
    +/- 0.6 % (AI2) for a temperature variation 60 °C
    +/- 1 % (AO1) for a temperature variation 60 °C

    linearity error
    +/- 0.15 % of maximum value (AI1-/Al1+)
    +/- 0.15 % of maximum value (AI2)
    +/- 0.2 % (AO1)

    analogue output number
    1

    analogue output type
    AO1 software-configurable current, analogue output range 0...20 mA, impedance: 500 Ohm, resolution 10 bits
    AO1 software-configurable voltage, analogue output range 0...10 V DC, impedance: 470 Ohm, resolution 10 bits
    AO1 software-configurable logic output 10 V, 20 mA

    discrete output number
    2

    discrete output type
    Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
    Configurable relay logic: (R2A, R2B) NO - 100000 cycles

    maximum response time
    <= 100 ms in STO (Safe Torque Off)
    R1A, R1B, R1C <= 7 ms, tolerance +/- 0.5 ms
    R2A, R2B <= 7 ms, tolerance +/- 0.5 ms

    minimum switching current
    3 mA at 24 V DC for configurable relay logic

    maximum switching current
    R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 and L/R = 7 ms
    R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 and L/R = 7 ms
    R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 and L/R = 0 ms
    R1, R2: 5 A at 30 V DC resistive load, cos phi = 1 and L/R = 0 ms

    discrete input number
    7

    discrete input type
    Programmable (LI1...LI5)24 V DC (<= 30 V), with level 1 PLC - 3500 Ohm
    Switch-configurable (LI6)24 V DC (<= 30 V), with level 1 PLC - 3500 Ohm
    Switch-configurable PTC probe (LI6)0…6 probes - 1500 Ohm
    Safety input (PWR)24 V DC (<= 30 V) - 1500 Ohm

    discrete input logic
    Negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)
    Positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)
    Negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)
    Positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)

    acceleration and deceleration ramps
    S, U or customized
    Automatic adaptation of ramp if braking capacity exceeded, by using resistor
    Linear adjustable separately from 0.01 to 9000 s

    braking to standstill
    By DC injection

    protection type
    Against exceeding limit speed: drive
    Against input phase loss: drive
    Break on the control circuit: drive
    Input phase breaks: drive
    Line supply overvoltage: drive
    Line supply undervoltage: drive
    Overcurrent between output phases and earth: drive
    Overheating protection: drive
    Overvoltages on the DC bus: drive
    Power removal: drive
    Short-circuit between motor phases: drive
    Thermal protection: drive
    Motor phase break: motor
    Power removal: motor
    Thermal protection: motor

    insulation resistance
    > 1 mOhm 500 V DC for 1 minute to earth

    frequency resolution
    Analog input: 0.024/50 Hz
    Display unit: 0.1 Hz

    connector type
    1 RJ45 (on front face) for Modbus
    1 RJ45 (on terminal) for Modbus
    Male SUB-D 9 on RJ45 for CANopen

    physical interface
    2-wire RS 485 for Modbus

    transmission frame
    RTU for Modbus

    transmission rate
    4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal
    9600 bps, 19200 bps for Modbus on front face
    20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen

    data format
    8 bits, 1 stop, even parity for Modbus on front face
    8 bits, odd even or no configurable parity for Modbus on terminal

    number of addresses
    1…127 for CANopen
    1…247 for Modbus

    method of access
    Slave CANopen

    marking
    CE

    operating position
    Vertical +/- 10 degree

    net weight
    300 kg

    width
    1120 mm

    height
    1150 mm

    depth
    377 mm

    Environment
    noise level
    71 dB conforming to 86/188/EEC

    dielectric strength
    3535 V DC between earth and power terminals
    5092 V DC between control and power terminals

    electromagnetic compatibility
    Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
    Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
    Voltage dips and interruptions immunity test conforming to IEC 61000-4-11

    standards
    EN/IEC 61800-5-1
    EN 61800-3 environments 2 category C3
    UL Type 1
    IEC 60721-3-3 class 3C2
    EN/IEC 61800-3
    EN 55011 class A group 2
    EN 61800-3 environments 1 category C3

    product certifications
    CSA
    C-Tick
    GOST
    NOM 117
    DNV
    UL

    pollution degree
    3 conforming to EN/IEC 61800-5-1
    3 conforming to UL 840

    degree of proctection
    IP41 on upper part conforming to EN/IEC 60529
    IP41 on upper part conforming to EN/IEC 61800-5-1
    IP00 conforming to EN/IEC 60529
    IP00 conforming to EN/IEC 61800-5-1
    IP30 on side parts conforming to EN/IEC 60529
    IP30 on side parts conforming to EN/IEC 61800-5-1
    IP30 on the front panel conforming to EN/IEC 60529
    IP30 on the front panel conforming to EN/IEC 61800-5-1

    vibration resistance
    0.6 gn (f= 10…200 Hz) conforming to EN/IEC 60068-2-6
    1.5 mm peak to peak (f= 3…10 Hz) conforming to EN/IEC 60068-2-6

    shock resistance
    4 gn for 11 ms conforming to EN/IEC 60068-2-27

    relative humidity
    5…95 % without condensation conforming to IEC 60068-2-3
    5…95 % without dripping water conforming to IEC 60068-2-3

    ambient air temperature for operation
    -10…45 °C (without derating)
    45…60 °C (with derating factor)

    ambient air temperature for storage
    -25…70 °C

    operating altitude
    <= 1000 m without derating
    1000...3000 m with current derating 1 % per 100 m

    Packing Units
    Package 1 Weight
    475.000 kg

    Package 1 Height
    5.300 dm

    Package 1 width
    11.700 dm

    Package 1 Length
    14.500 dm

    Offer Sustainability
    Sustainable offer status
    Green Premium product

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

    Contractual warranty
    Warranty
    18 months
