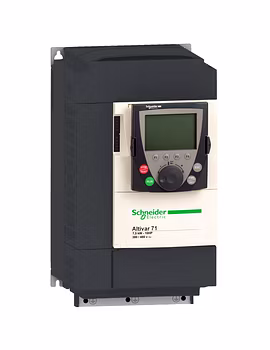

ATV71HU75N4383

SKU:ATV71HU75N4383

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

Variable speed drive ATV71 - 7.5kW-10HP - 480V - EMC filter-graphic terminal
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information

    Main
    range of product
    Altivar 71

    product or component type
    Variable speed drive

    product specific application
    Complex, high-power machines

    component name
    ATV71

    motor power kW
    7.5 kW, 3 phases at 380...480 V

    motor power hp
    10 hp, 3 phases at 380...480 V

    maximum motor cable length
    50 m shielded cable
    100 m unshielded cable

    power supply voltage
    380...480 V - 15...10 %

    network number of phases
    3 phases

    line current
    22.2 A for 480 V 3 phases 7.5 kW / 10 hp
    27 A for 380 V 3 phases 7.5 kW / 10 hp

    EMC filter
    Integrated

    assembly style
    With heat sink

    variant
    Control synchronous motors with speed feedback

    apparent power
    17.8 kVA at 380 V 3 phases 7.5 kW / 10 hp

    prospective line Isc
    22 kA for 3 phases

    nominal output current
    14 A at 4 kHz 460 V 3 phases 7.5 kW / 10 hp
    17.6 A at 4 kHz 380 V 3 phases 7.5 kW / 10 hp

    maximum transient current
    26.4 A for 60 s 3 phases 7.5 kW / 10 hp
    29 A for 2 s 3 phases 7.5 kW / 10 hp

    output frequency
    0.1…599 Hz

    nominal switching frequency
    4 kHz

    switching frequency
    1...16 kHz adjustable
    4...16 kHz with derating factor

    asynchronous motor control profile
    Flux vector control (FVC) with sensor (current vector)
    Voltage/frequency ratio (2 or 5 points)
    Sensorless flux vector control (SFVC) (voltage or current vector)
    ENA (Energy adaptation) system for unbalanced loads

    type of polarization
    No impedance for Modbus

    Complementary
    product destination
    Synchronous motors
    Asynchronous motors

    power supply voltage limits
    323…528 V

    power supply frequency
    50...60 Hz - 5...5 %

    power supply frequency limits
    47.5...63 Hz

    speed range
    1…100 for asynchronous motor in open-loop mode, without speed feedback
    1…1000 for asynchronous motor in closed-loop mode with encoder feedback
    1…1000 for synchronous motor in closed-loop mode with encoder feedback
    1…50 for synchronous motor in open-loop mode, without speed feedback

    speed accuracy
    +/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn
    +/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn

    torque accuracy
    +/- 15 % in open-loop mode, without speed feedback
    +/- 5 % in closed-loop mode with encoder feedback

    transient overtorque
    170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes
    220 % of nominal motor torque +/- 10 % for 2 s

    braking torque
    <= 150 % with braking or hoist resistor
    30 % without braking resistor

    synchronous motor control profile
    Vector control with speed feedback
    Vector control without speed feedback

    regulation loop
    Adjustable PI regulator

    motor slip compensation
    Not available in voltage/frequency ratio (2 or 5 points)
    Automatic whatever the load
    Suppressable
    Adjustable

    diagnostic
    1 LED (red)drive voltage:

    output voltage
    <= power supply voltage

    insulation
    Electrical between power and control

    type of cable for mounting in an enclosure
    With a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC
    With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC
    Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC
    Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR

    electrical connection
    Terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
    Terminal, clamping capacity: 6 mm², AWG 8 (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB)

    tightening torque
    0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
    3 N.m, 26.5 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB)

    supply
    Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
    Internal supply: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection

    analogue input number
    2

    analogue input type
    AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign
    AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits
    AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits

    input sampling time
    2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s)
    2 ms +/- 0.5 ms (Al2) - analog input(s)
    2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s)
    2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s)

    response time
    <= 100 ms in STO (Safe Torque Off)
    AO1 2 ms, tolerance +/- 0.5 ms for analog output(s)
    R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s)
    R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s)

    absolute accuracy precision
    +/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C
    +/- 0.6 % (AI2) for a temperature variation 60 °C
    +/- 1 % (AO1) for a temperature variation 60 °C

    linearity error
    +/- 0.15 % of maximum value (AI1-/Al1+, AI2)
    +/- 0.2 % (AO1)

    analogue output number
    1

    analogue output type
    AO1 software-configurable logic output 10 V 20 mA
    AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits
    AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits

    discrete output number
    2

    discrete output type
    Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
    Configurable relay logic: (R2A, R2B) NO - 100000 cycles

    minimum switching current
    3 mA at 24 V DC for configurable relay logic

    maximum switching current
    R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4
    R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4
    R1, R2: 5 A at 250 V AC resistive load, cos phi = 1
    R1, R2: 5 A at 30 V DC resistive load, cos phi = 1

    discrete input number
    7

    discrete input type
    LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm
    LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm
    LI6: switch-configurable PTC probe 0…6, impedance: 1500 Ohm
    PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d

    discrete input logic
    Negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)
    Positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)
    Negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)
    Positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)

    acceleration and deceleration ramps
    S, U or customized
    Automatic adaptation of ramp if braking capacity exceeded, by using resistor
    Linear adjustable separately from 0.01 to 9000 s

    braking to standstill
    By DC injection

    protection type
    Against exceeding limit speed: drive
    Against input phase loss: drive
    Break on the control circuit: drive
    Input phase breaks: drive
    Line supply overvoltage: drive
    Line supply undervoltage: drive
    Overcurrent between output phases and earth: drive
    Overheating protection: drive
    Overvoltages on the DC bus: drive
    Short-circuit between motor phases: drive
    Thermal protection: drive
    Motor phase break: motor
    Power removal: motor
    Thermal protection: motor

    insulation resistance
    > 1 mOhm 500 V DC for 1 minute to earth

    frequency resolution
    Analog input: 0.024/50 Hz
    Display unit: 0.1 Hz

    communication port protocol
    CANopen
    Modbus

    connector type
    1 RJ45 (on front face) for Modbus
    1 RJ45 (on terminal) for Modbus
    Male SUB-D 9 on RJ45 for CANopen

    physical interface
    2-wire RS 485 for Modbus

    transmission frame
    RTU for Modbus

    transmission rate
    4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal
    9600 bps, 19200 bps for Modbus on front face
    20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen

    data format
    8 bits, 1 stop, even parity for Modbus on front face
    8 bits, odd even or no configurable parity for Modbus on terminal

    number of addresses
    1…127 for CANopen
    1…247 for Modbus

    method of access
    Slave CANopen

    marking
    CE

    operating position
    Vertical +/- 10 degree

    height
    295 mm

    depth
    187 mm

    width
    175 mm

    net weight
    5.5 kg

    option card
    Communication card for CC-Link
    Controller inside programmable card
    Communication card for DeviceNet
    Communication card for Ethernet/IP
    Communication card for Fipio
    I/O extension card
    Communication card for Interbus-S
    Interface card for encoder
    Communication card for Modbus Plus
    Communication card for Modbus TCP
    Communication card for Modbus/Uni-Telway
    Overhead crane card
    Communication card for Profibus DP
    Communication card for Profibus DP V1

    Environment
    noise level
    55.6 dB conforming to 86/188/EEC

    dielectric strength
    3535 V DC between earth and power terminals
    5092 V DC between control and power terminals

    electromagnetic compatibility
    1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
    Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
    Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
    Voltage dips and interruptions immunity test conforming to IEC 61000-4-11

    standards
    IEC 60721-3-3 class 3S2
    UL Type 1
    IEC 60721-3-3 class 3C1
    EN 61800-3 environments 1 category C3
    EN/IEC 61800-5-1
    EN 55011 class A group 2
    EN 61800-3 environments 2 category C3
    EN/IEC 61800-3

    product certifications
    UL
    NOM 117
    GOST
    C-Tick
    CSA

    pollution degree
    2 conforming to EN/IEC 61800-5-1

    IP degree of protection
    IP20 on upper part without blanking plate on cover conforming to EN/IEC 60529
    IP20 on upper part without blanking plate on cover conforming to EN/IEC 61800-5-1
    IP21 conforming to EN/IEC 60529
    IP21 conforming to EN/IEC 61800-5-1
    IP41 on upper part conforming to EN/IEC 60529
    IP41 on upper part conforming to EN/IEC 61800-5-1
    IP54 on lower part conforming to EN/IEC 60529
    IP54 on lower part conforming to EN/IEC 61800-5-1

    vibration resistance
    1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6
    1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6

    shock resistance
    15 gn for 11 ms conforming to EN/IEC 60068-2-27

    relative humidity
    5…95 % without condensation conforming to IEC 60068-2-3
    5…95 % without dripping water conforming to IEC 60068-2-3

    ambient air temperature for operation
    -10…50 °C (without derating)

    ambient air temperature for storage
    -25…70 °C

    operating altitude
    <= 1000 m without derating
    1000...3000 m with current derating 1 % per 100 m

    Packing Units
    Unit Type of Package 1
    PCE

    Number of Units in Package 1
    1

    Package 1 Weight
    8.171 kg

    Package 1 Height
    32 cm

    Package 1 width
    30 cm

    Package 1 Length
    40 cm

    Unit Type of Package 2
    S06

    Number of Units in Package 2
    1

    Package 2 Height
    73.5 cm

    Package 2 width
    80 cm

    Package 2 Length
    60 cm

    Offer Sustainability
    Sustainable offer status
    Green Premium product

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

    Contractual warranty
    Warranty
    18 months
