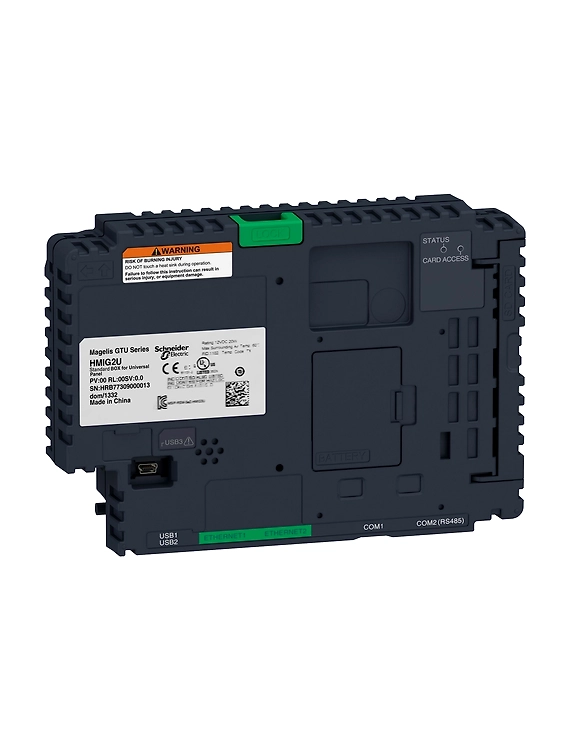

HMIG2U

SKU:HMIG2U

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

Standard Box for Universal Panel
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information


    Main
    range of product
    Harmony GTU

    product or component type
    Base unit

    device short name
    Standard box

    operating system
    Harmony

    software package
    Vijeo Designer run time 8000 variables

    Complementary
    range compatibility
    Harmony GTU
    Allen-Bradley
    ABB
    MitsubishI
    Omron
    Siemens

    processor name
    CPU RISC 600 MHz

    data storage equipment
    1 GB built-in flash memory

    port Ethernet
    10BASE-T/100BASE-T

    memory description
    256 MB RAM internal (2 x 13 mm board)
    512 kB NVRAM backup memory

    number of slots
    1 slot(s) for SD card

    type of cooling
    Natural convection

    integrated connection type
    Ethernet TCP/IP with 2 RJ45
    COM1 serial link SUB-D 9 RS232C, transmission rate: 2400...115200 bps
    COM2 serial link RJ45 RS485, transmission rate: 187.5 kbps
    USB 2.0 port with 2 USB type A
    USB 2.0 port mini B USB

    communication port protocol
    Modbus
    Modbus TCP/IP
    Uni-Telway

    realtime clock
    Built-in

    [Us] rated supply voltage
    12...24 V DC power supply

    local signalling
    LED: (steady), green for operating status (RUN)
    LED: (faded), green for stand-by
    LED: (flashing), orange for software starting up
    LED: (steady), red for power ON
    LED: (alternate), green, orange and red for module error (ERR)
    LED: (alternate), red/orange for boot status
    LED: (alternate), green/red for connection status

    depth
    45 mm

    height
    131 mm

    width
    188 mm

    net weight
    0.9 kg

    Environment
    standards
    CSA C22.2 No 142
    ANSI/ISA 12-12-01
    UL 508
    Class I division 2 CSA C22.2 No 213
    IEC 61132-2

    product certifications
    CE
    CULus
    ATEX
    IEC-Ex
    RCM
    GL
    KC
    CUL
    EAC

    resistance to fast transients
    1 kV (signal ports) conforming to IEC 61000-4-4
    2 kV (power ports) conforming to IEC 61000-4-4

    resistance to electrostatic discharge
    6 kV contact discharge conforming to EN/IEC 61000-4-2 level 3
    8 kV air discharge conforming to EN/IEC 61000-4-2 level 3

    pollution degree
    2 conforming to EN 61131-2 Ed.3

    electromagnetic compatibility
    Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3

    ambient air temperature for storage
    -20…60 °C

    relative humidity
    10…90 % non-condensing

    ambient air temperature for operation
    0…60 °C

    operating altitude
    2000 m

    vibration resistance
    3.5 mm constant amplitude (f = 5…9 Hz)X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
    9.8 m/s² (f = 9…150 Hz)X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2

    shock resistance
    147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2

    environmental characteristic
    Corrosive gas free

    Packing Units
    Package 1 Weight
    1.120 kg

    Package 1 Height
    14.000 cm

    Package 1 width
    21.000 cm

    Package 1 Length
    26.000 cm
