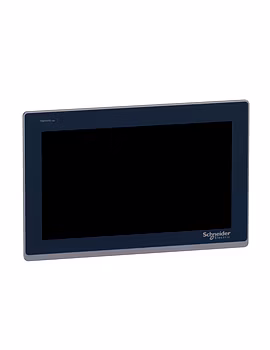

HMIST6700

SKU:HMIST6700

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

15"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information

    Main
    range of product
    Harmony ST6

    product or component type
    Touch panel screen

    software designation
    EcoStruxure Operator Terminal Expert

    processor name
    ARM Cortex-A8

    Complementary
    display size
    15 inch

    display type
    Colour TFT LCD

    display colour
    16 million colours

    display resolution
    1366 x 768 pixels FWXGA

    touch panel
    Single touch analogue resistive

    backlight lifespan
    50000 hours with white

    brightness
    16 levels

    character font
    ASCII
    ASCII (European characters)
    Chinese (simplified Chinese)
    Japanese (ANK, Kanji)
    Katakana
    Korean
    Taiwanese (traditional Chinese)

    [Us] rated supply voltage
    24 V DC +/- 20 %

    inrush current
    30 A

    local signalling
    Status LED green, steady for offline
    Status LED green, steady for operating
    Status LED green, flashing for operating
    Status LED green, faded for stand-by
    Status LED orange, flashing for software starting up
    Status LED red, steady for power supply (ON)
    Status LED red, flashing for operating
    Status LED red, off for power supply (OFF)

    power consumption in W
    18.5 W

    number of pages
    200 application pages

    processor frequency
    800 MHz

    port Ethernet
    10/100BASE

    memory description
    Device memory 1 GB
    Backup memory 512 kB
    User data memory 512 MB

    integrated connection type
    1 COM1 serial link - 1 SUB-D 9-pin female - RS232C (rate: 2400...115200 bps)bottom
    1 COM2 serial link - female RJ45 - RS485 (rate: 2400...115200 bps)back
    COM2 serial link (rate: 2400...187500 bps)back
    1 USB 2.0 type Abottom
    1 USB 2.0 type micro B
    2 Ethernet

    supply
    External supply

    realtime clock
    Built-in 0...50 °C
    Built-in 10...90 % RH

    downloadable protocols
    Modbus
    Uni-TE
    Third party protocols

    product brand
    Schneider Electric Modicon
    Mitsubishi Melsec
    Omron Sysmac
    Rockwell Automation Allen-Bradley
    Siemens Simatic

    fixing mode
    By 6 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201
    By 6 screws conforming to EN 61131-2
    By 6 screws conforming to IEC 61000-6-2

    enclosure material
    PC

    front material
    Aluminium

    marking
    CE

    cut-out dimensions
    394 x 250 mm panel cut dimension

    height
    268 mm

    width
    412 mm

    depth
    50 mm

    net weight
    2.7 kg

    Environment
    immunity to microbreaks
    10 ms

    standards
    EN 61000-6-4
    EN 61000-6-2
    EN 61131-2
    UL 61010-2-201
    CSA C22.2 No 61010-2-201

    product certifications
    CSA
    CE
    China RoHS
    REACH

    directives
    2014/35/EU - low voltage directive
    2014/30/EU - electromagnetic compatibility

    ambient air temperature for operation
    0…50 °C

    ambient air temperature for storage
    -20…60 °C

    relative humidity
    10…90 % non-condensing

    operating altitude
    2000 m

    IP degree of protection
    IP20 (rear panel) conforming to IEC 61131-2
    IP65 (front panel) conforming to IEC 61131-2

    NEMA degree of protection
    NEMA 4 front panel (indoor use)
    NEMA 13 front panel (in enclosure)

    shock resistance
    147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2

    vibration resistance
    +/- 3.5 mm (f = 5…9 Hz)X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
    9.8 m/s² (f = 9…150 Hz)

    electromagnetic compatibility
    Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
    Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)
    Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
    Electrostatic discharge immunity test - test level: 8 kV (air discharge)

    Packing Units
    Package 1 Weight
    2520.000 g

    Package 1 Height
    5.000 cm

    Package 1 width
    26.800 cm

    Package 1 Length
    41.200 cm

    Offer Sustainability
    Sustainable offer status
    Green Premium product

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
