HMISTO511

SKU:HMISTO511

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

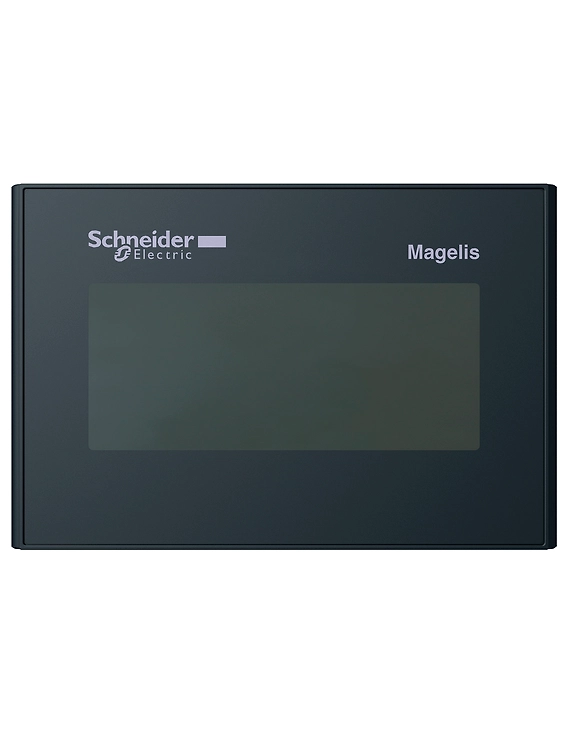

Touch panel screen 3’’4 monochrome G/O/R
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information

    Main
    range of product
    Harmony STO & STU

    product or component type
    Touch panel screen

    software designation
    Vijeo Designer

    operating system
    Harmony

    processor name
    CPU RISC

    Complementary
    display size
    3.4 inch

    display type
    Backlit monochrome STN LCD

    background colour
    Green, orange and red

    display resolution
    200 x 80 pixels

    touch panel
    Analogue

    backlight lifespan
    10000 hours with red
    50000 hours with orange
    50000 hours with green

    brightness
    8 levels

    contrast
    16 levels via touch panel

    character font
    Japanese (ANK, Kanji)
    Korean
    Chinese (simplified Chinese)
    ASCII
    Taiwanese (traditional Chinese)

    [Us] rated supply voltage
    24 V DC +/- 20 %

    inrush current
    30 A

    local signalling
    1 LED (green)normal operation:

    power consumption in W
    5 W

    number of pages
    Limited by internal memory capacity

    processor frequency
    333 MHz

    memory description
    Application memory 16 MB
    Back up of data 128 kB

    integrated connection type
    1 USB 2.0 type mini B
    1 USB 2.0 type A
    power supply - removable screw terminal block
    COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s)

    supply
    External source

    realtime clock
    Access to the PLC real-time clock

    downloadable protocols
    Uni-TE
    Third party protocols
    Modbus

    fixing mode
    By 2 spring clips, mounting on 1.6...5 mm thick panel

    enclosure material
    PPT

    marking
    CE

    height
    77.5 mm

    width
    116.5 mm

    depth
    36.5 mm

    Environment
    immunity to microbreaks
    3 ms

    standards
    EN 61131-2
    IEC 61000-6-2
    UL 508
    UL 1604
    FCC Class A

    product certifications
    C-Tick
    CE
    UL Class 1 Division 2 T5
    GOST
    UL Class 1 Division 2 T4A
    CULus

    ambient air temperature for operation
    0…50 °C

    ambient air temperature for storage
    -20…60 °C

    relative humidity
    0…90 % without condensation

    operating altitude
    <= 2000 m

    IP degree of protection
    IP20 (rear panel) conforming to IEC 60529
    IP65 (front panel) conforming to IEC 60529

    NEMA degree of protection
    NEMA 4X front panel (indoor use)

    shock resistance
    15 gn for 11 ms conforming to IEC 60068-2-27

    vibration resistance
    +/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6
    1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6

    electromagnetic compatibility
    Resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3

    Packing Units
    Unit Type of Package 1
    PCE

    Number of Units in Package 1
    1

    Package 1 Weight
    360 g

    Package 1 Height
    9 cm

    Package 1 width
    13 cm

    Package 1 Length
    18.5 cm

    Offer Sustainability
    REACh free of SVHC
    Yes

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

    Contractual warranty
    Warranty
    18 months
    "
