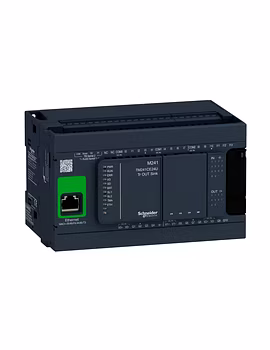

TM241CE24U

SKU:TM241CE24U

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

Controller M241 24 IO transistor NPN Ethernet
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information

    Main
    range of product
    Modicon M241

    product or component type
    Logic controller

    [Us] rated supply voltage
    24 V DC

    discrete input number
    14, discrete input 8 fast input conforming to IEC 61131-2 Type 1

    discrete output type
    Transistor

    discrete output number
    10 transistor 4 fast output

    discrete output voltage
    24 V DC for transistor output

    discrete output current
    0.5 A for transistor output (Q0...Q9)
    0.1 A for fast output (PTO mode) (Q0...Q3)

    Complementary
    discrete I/O number
    24

    maximum number of I/O expansion module
    7 (local)
    14 (remote)

    supply voltage limits
    20.4…28.8 V

    inrush current
    50 A

    power consumption in W
    32.6…40.4 W (with max number of I/O expansion module)

    discrete input logic
    Sink or source

    discrete input voltage
    24 V

    discrete input voltage type
    DC

    voltage state 1 guaranteed
    >= 15 V for input

    voltage state 0 guaranteed
    <= 5 V for input

    discrete input current
    5 mA for input
    10.7 mA for fast input

    input impedance
    4.7 kOhm for input
    2.81 kOhm for fast input

    response time
    50 µs turn-on, I0...I13 terminal(s) for input
    50 µs turn-off, I0...I13 terminal(s) for input
    <= 2 µs turn-on, I0...I7 terminal(s) for fast input
    <= 2 µs turn-off, I0...I7 terminal(s) for fast input
    <= 34 µs turn-on, Q0...Q9 terminal(s) for output
    <= 250 µs turn-off, Q0...Q9 terminal(s) for output
    <= 2 µs turn-on, Q0...Q3 terminal(s) for fast output
    <= 2 µs turn-off, Q0...Q3 terminal(s) for fast output

    configurable filtering time
    1 µs for fast input
    12 ms for fast input
    0 ms for input
    1 ms for input
    4 ms for input
    12 ms for input

    discrete output logic
    Negative logic (sink)

    output voltage limits
    30 V DC

    maximum current per output common
    2 A with Q0...Q3 for fast output
    2 A with Q4...Q7 for output
    1 A with Q8...Q9 for output

    maximum output frequency
    20 kHz for fast output (PWM mode)
    100 kHz for fast output (PLS mode)
    1 kHz for output

    accuracy
    +/- 0.1 % at 0.02…0.1 kHz for fast output
    +/- 1 % at 0.1…1 kHz for fast output

    maximum leakage current
    5 µA for output

    maximum voltage drop
    <1 V

    maximum tungsten load
    <2.4 W

    protection type
    Short-circuit protection
    Short-circuit and overload protection with automatic reset
    Reverse polarity protection for fast output

    reset time
    10 ms automatic reset output
    12 s automatic reset fast output

    memory capacity
    8 MB for program
    64 MB for system memory RAM

    data backed up
    128 MB built-in flash memory for backup of user programs

    data storage equipment
    <= 16 GB SD card (optional)

    battery type
    BR2032 lithium non-rechargeable, battery life: 4 year(s)

    backup time
    2 years at 25 °C

    execution time for 1 KInstruction
    0.3 ms for event and periodic task
    0.7 ms for other instruction

    application structure
    8 external event tasks
    4 cyclic master tasks
    8 event tasks
    3 cyclic master tasks + 1 freewheeling task

    realtime clock
    With

    clock drift
    <= 60 s/month at 25 °C

    positioning functions
    PTO function 4 channel(s) (positioning frequency: 100 kHz)
    PTO function 4 channel(s) for transistor output (positioning frequency: 1 kHz)

    counting input number
    4 fast input (HSC mode) at 200 kHz
    14 standard input at 1 kHz

    control signal type
    A/B at 100 kHz for fast input (HSC mode)
    Pulse/direction at 200 kHz for fast input (HSC mode)
    Single phase at 200 kHz for fast input (HSC mode)

    integrated connection type
    Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface
    Non isolated serial link serial 2 with removable screw terminal block connector and RS485 interface
    USB port with mini B USB 2.0 connector
    Ethernet with RJ45 connector

    supply
    (serial 1)serial link supply: 5 V, <200 mA

    transmission rate
    1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485
    1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232
    480 Mbit/s for bus length of 3 m for USB
    10/100 Mbit/s for Ethernet

    communication port protocol
    Non isolated serial link: Modbus master/slave

    port Ethernet
    10BASE-T/100BASE-TX - 1 port(s) copper cable

    ethernet services
    FDR
    DHCP server via TM4 Ethernet switch network module
    DHCP client embedded Ethernet port
    SMS notifications
    Updating firmware
    SNMP client/server
    Programming
    NGVL
    Monitoring
    IEC VAR ACCESS
    FTP client/server
    Downloading
    SQL client
    Modbus TCP client I/O scanner
    Ethernet/IP originator I/O scanner embedded Ethernet port
    Ethernet/IP target, Modbus TCP server and Modbus TCP slave
    Send and receive email from the controller based on TCP/UDP library
    Web server (WebVisu & XWeb system)
    OPC UA server
    DNS client

    local signalling
    1 LED (green)PWR:
    1 LED (green)RUN:
    1 LED (red)module error (ERR):
    1 LED (red)I/O error (I/O):
    1 LED (green)SD card access (SD):
    1 LED (red)BAT:
    1 LED (green)SL1:
    1 LED (green)SL2:
    1 LED (red)bus fault on TM4 (TM4):
    1 LED per channel (green)I/O state:
    1 LED (green)Ethernet port activity:

    electrical connection
    removable screw terminal blockfor inputs and outputs (pitch 5.08 mm)
    removable screw terminal blockfor connecting the 24 V DC power supply (pitch 5.08 mm)

    maximum cable distance between devices
    Unshielded cable: <50 m for input
    Shielded cable: <10 m for fast input
    Unshielded cable: <50 m for output
    Shielded cable: <3 m for fast output

    insulation
    Between supply and internal logic at 500 V AC
    Non-insulated between supply and ground
    Between input and internal logic at 500 V AC
    Non-insulated between inputs
    Between fast input and internal logic at 500 V AC
    Between output and internal logic at 500 V AC
    Non-insulated between outputs
    Between fast output and internal logic at 500 V AC
    Between output groups at 500 V AC

    marking
    CE

    surge withstand
    1 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5
    1 kV shielded cable common mode conforming to EN/IEC 61000-4-5
    0.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5
    1 kV relay output differential mode conforming to EN/IEC 61000-4-5
    1 kV input common mode conforming to EN/IEC 61000-4-5
    1 kV transistor output common mode conforming to EN/IEC 61000-4-5

    web services
    Web server

    maximum number of connections
    8 Modbus server
    8 SoMachine protocol
    10 web server
    4 FTP server
    16 Ethernet/IP target
    8 Modbus client

    number of slave
    64 Modbus TCP:
    16 Ethernet/IP:

    cycle time
    10 ms 16 Ethernet/IP
    64 ms 64 Modbus TCP

    mounting support
    Top hat type TH35-15 rail conforming to IEC 60715
    Top hat type TH35-7.5 rail conforming to IEC 60715
    plate or panel with fixing kit

    height
    90 mm

    depth
    95 mm

    width
    150 mm

    net weight
    0.53 kg

    Environment
    standards
    ANSI/ISA 12-12-01
    CSA C22.2 No 142
    CSA C22.2 No 213
    EN/IEC 61131-2:2007
    Marine specification (LR, ABS, DNV, GL)
    UL 1604
    UL 508

    product certifications
    IACS E10
    CSA
    CULus
    RCM

    resistance to electrostatic discharge
    8 kV in air conforming to EN/IEC 61000-4-2
    4 kV on contact conforming to EN/IEC 61000-4-2

    resistance to electromagnetic fields
    10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
    3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
    1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

    resistance to fast transients
    2 kV (power lines) conforming to EN/IEC 61000-4-4
    1 kV (Ethernet line) conforming to EN/IEC 61000-4-4
    1 kV (serial link) conforming to EN/IEC 61000-4-4
    1 kV (input) conforming to EN/IEC 61000-4-4
    1 kV (transistor output) conforming to EN/IEC 61000-4-4

    resistance to conducted disturbances
    10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
    3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL)
    10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

    electromagnetic emission
    Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to EN/IEC 55011
    Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to EN/IEC 55011
    Radiated emissions - test level: 40 dBμV/m QP class A at 30…230 MHz conforming to EN/IEC 55011
    Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to EN/IEC 55011
    Radiated emissions - test level: 47 dBμV/m QP class A at 230…1000 MHz conforming to EN/IEC 55011

    immunity to microbreaks
    10 ms

    ambient air temperature for operation
    -10…50 °C (vertical installation)
    -10…55 °C (horizontal installation)

    ambient air temperature for storage
    -25…70 °C

    relative humidity
    10…95 %, without condensation (in operation)
    10…95 %, without condensation (in storage)

    IP degree of protection
    IP20 with protective cover in place

    pollution degree
    2

    operating altitude
    0...2000 m

    storage altitude
    0…3000 m

    vibration resistance
    3.5 mm at 5…8.4 Hz on symmetrical rail
    3 gn at 8.4…150 Hz on symmetrical rail
    3.5 mm at 5…8.4 Hz on panel mounting
    3 gn at 8.4…150 Hz on panel mounting

    shock resistance
    15 gn for 11 ms

    Packing Units
    Package 1 Weight
    606.000 g

    Package 1 Height
    128.000 mm

    Package 1 width
    114.500 mm

    Package 1 Length
    186.000 mm

    Offer Sustainability
    Sustainable offer status
    Green Premium product

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

    PVC free
    Yes
