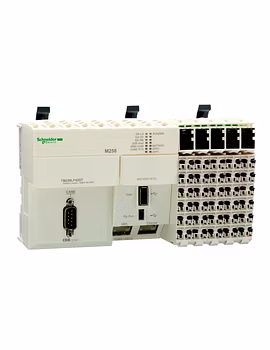

TM258LF42DT
Price upon request
-
Product is not available
Minimum Order Quantity4
Accept Small Orders No
Compact base M258 - 42 I/O - 24 V DC - CANopen
-
Additional Information
Main range of product Modicon M258product or component type Logic controllerproduct specific application -discrete I/O number 42discrete output number 12 output
4 fast outputComplementary discrete input number 10 for fast input
12 for input
4 for regular inputdiscrete input logic Sink for fast input
Sink for regular input
Source for inputdiscrete input voltage 24 Vdiscrete input voltage type DCvoltage state 1 guaranteed >= 15 V for fast input
>= 15 V for fast output
>= 15 V for regular inputvoltage state 0 guaranteed <= 5 V for fast input
<= 5 V for fast output
<= 5 V for regular inputdiscrete input current 4 mA for fast input
4 mA for regular inputinput impedance 6 kOhm for fast input
6 kOhm for regular inputconfigurable filtering time 0 ms for fast input/regular input and fast output
1.5 ms for fast input/regular input and fast output
12 ms for fast input/regular input and fast output
4 ms for fast input/regular input and fast outputanti bounce filtering 2 µs...4 ms configurable fast input/regular input and fast outputmaximum cable distance between devices <30 m for fast input
<30 m for fast output
<30 m for regular inputisolation between channels and internal logic 500 Vrms ACisolation between channels Nonediscrete output logic Sourcediscrete output voltage 24 V DCoutput voltage limits 19.2...28.8 Vdiscrete output current 4 mA for fast output[Us] rated supply voltage 24 V DC for embedded expert modules power
24 V DC for I/O power segment
24 V DC for main supplysupply voltage limits 20.4…28.8 V[In] rated current 0.04 A for embedded expert modules power
10 A for I/O power segment
0.26 A for main supplypeak current 100 kA (duration = <= 70 s) for main supply
25 kA (duration = <= 500 s) for I/O power segment
50 kA (duration = <= 150 s) for embedded expert modules power
1.2 A (duration = > 70 s) for main supplymaximum power consumption in W 13.03 Wexecution time per instruction 22 ns Booleanmemory description Flash 128 MB
Internal RAM 64 MBrealtime clock Without any user calibration clock, clock drift < 30 s/month at 25 °C
With user calibration clock, clock drift <= 6 s/monthdata backed up Variables of type retain and retain persistent CR2477M Renata, 1.5 years autonomyintegrated connection type 1 isolated serial link with female RJ45 connectorModbus with master/slave RTU/ASCII or character mode ASCII, physical interface: RS232/RS485, transmission rate: 300...115200 bps
1 isolated serial link with female RJ45 connectorEthernet Modbus TCP/IP with slave, physical interface: 10BASE-T/100BASE-TX
1 isolated serial link with mini B USB connector, transmission rate: 480 Mbit/s
1 isolated serial link with USB type A connector, transmission rate: 480 Mbit/s
1 CANopen with male SUB-D 9 connectorCANopen with mastertransmission rate 125 kbit/s for bus length of 500 m for CANopen
250 kbit/s for bus length of 250 m for CANopen
50 kbit/s for bus length of 1000 m for CANopen
500 kbit/s for bus length of 100 m for CANopen
10 kbit/s for bus length of 5000 m for CANopen
1000 kbit/s for bus length of 4 m for CANopen
20 kbit/s for bus length of 2500 m for CANopen
800 kbit/s for bus length of 25 m for CANopencounting input number 8 counting input(s) at 200 kHzlocal signalling 1 LED per channel for I/O state
1 LED for CAN0 STS
1 LED for MBS COM
1 LED green/red for APP0
1 LED green/red for APP1
1 LED green/red for Eth NS (Ethernet network status)
1 LED green/red for Eth ST (Ethernet status)
1 LED green/red for RUN/MS (module status)
1 LED green/red for USB host
1 LED green/yellow for Eth LA (Ethernet activity)
1 LED red for BATT (battery status)marking CEmounting support Symmetrical DIN railwidth 175 mmheight 99 mmdepth 85 mmnet weight 0.55 kgEnvironment standards UL 508
CSA C22.2 No 142
IEC 61131-2
CSA C22.2 No 213product certifications GOST-R
CULus
C-Tick
CSAambient air temperature for operation 0…55 °C without derating (horizontal installation)
0…60 °C with derating factor (horizontal installation)
0…50 °C (vertical installation)ambient air temperature for storage -25…70 °Crelative humidity 5…95 % without condensationIP degree of protection IP20 conforming to IEC 61131-2pollution degree 2 conforming to IEC 60664operating altitude 0...2000 mstorage altitude 0…3000 mvibration resistance 1 gn at 8.4…150 Hz on DIN rail
3.5 mm at 5…8.4 Hz on DIN railshock resistance 15 gn for 11 msresistance to electrostatic discharge 4 kV on contact conforming to EN/IEC 61000-4-2
8 kV in air conforming to EN/IEC 61000-4-2resistance to electromagnetic fields 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3
10 V/m 80...2000 MHz conforming to EN/IEC 61000-4-3resistance to fast transients 1 kV (I/O) conforming to EN/IEC 61000-4-4
1 kV (shielded cable) conforming to EN/IEC 61000-4-4
2 kV (power lines) conforming to EN/IEC 61000-4-4surge withstand 0.5 kV differential mode conforming to EN/IEC 61000-4-5
1 kV common mode conforming to EN/IEC 61000-4-5disturbance radiated/conducted CISPR 11Packing Units Unit Type of Package 1 PCENumber of Units in Package 1 1Package 1 Weight 778 gPackage 1 Height 13.5 cmPackage 1 width 15.6 cmPackage 1 Length 31 cmOffer Sustainability Sustainable offer status Green Premium productREACh free of SVHC YesEU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS DeclarationToxic heavy metal free YesMercury free YesRoHS exemption information China RoHS Regulation Environmental Disclosure Circularity Profile WEEE The product must be disposed on European Union markets following specific waste collection and never end up in rubbish binsPVC free YesContractual warranty Warranty 18 months -
