XALG041

SKU:XALG041

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

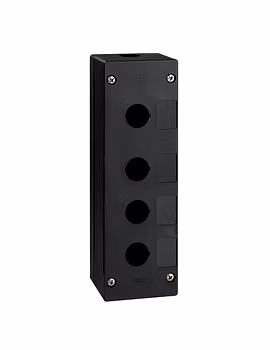

empty control station-severe environments-black- 4cut-outs- 4 vertical openings
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information

    Main
    range of product
    Harmony XALG

    product or component type
    Empty control station

    device short name
    XALG

    product destination
    For XB5 Ø 22 mm control and signalling units

    environmental characteristic
    Severe ambiance

    colour of base of enclosure
    Black (RAL 9005)

    colour of cover
    Black (RAL 9005)

    material
    Mineral reinforced polyamide

    cable entry
    2 knock-outs for ISO M20 cable entry

    IP degree of protection
    IP66 conforming to IEC 60529
    IP67 conforming to IEC 60529
    IP69
    IP69K

    Complementary
    assembly style
    For customer assembly

    number of cut-out
    3 cut-outs 40 mm
    1 cut-out 50 mm

    CAD overall width
    135 mm

    CAD overall height
    72 mm

    CAD overall depth
    65 mm

    net weight
    0.382 kg

    resistance to high pressure washer
    10 mPa at 80 °C, distance : 0.2 m

    Environment
    protective treatment
    TC
    TH

    ambient air temperature for storage
    -40…70 °C

    ambient air temperature for operation
    -25…70 °C

    electrical shock protection class
    Class II conforming to EN/IEC 61140

    IK degree of protection
    IK05 conforming to EN 50102

    resistance to chemical agents
    Good resistance to lactic acid at 10 °C
    Good resistant to detergent at 60 °C
    Not resistant to formic acid (10 %) at 50 °C
    Not resistant to lactic acid at 90 °C
    Good resistance to ammonia
    Good resistance to benzene
    Good resistance to butter
    Good resistance to citric acid (10 %)
    Good resistance to cutting compounds
    Good resistance to ethane
    Good resistance to ethanol
    Good resistance to ethylene
    Good resistance to fatty acids
    Good resistance to fatty alcohols
    Good resistance to milk
    Good resistance to motor oils and greases
    Good resistance to oils (vegetable, mineral)
    Good resistance to petroleum
    Good resistant to acetone
    Good resistant to uric acid (20 %)
    Limited resistance to acetic acid (10 %)
    Limited resistance to boric acid
    Not resistant to hydrogen peroxide (30 %)
    Not resistant to nitric acid (2 %)

    standards
    EN/IEC 60947-5-1
    EN/IEC 60947-1

    Packing Units
    Unit Type of Package 1
    PCE

    Number of Units in Package 1
    1

    Package 1 Weight
    390 g

    Package 1 Height
    8 cm

    Package 1 width
    29.4 cm

    Package 1 Length
    10.2 cm

    Unit Type of Package 2
    S03

    Number of Units in Package 2
    7

    Package 2 Weight
    3.139 kg

    Package 2 Height
    30 cm

    Package 2 width
    30 cm

    Package 2 Length
    40 cm

    Offer Sustainability
    Sustainable offer status
    Green Premium product

    REACh free of SVHC
    Yes

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Toxic heavy metal free
    Yes

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
