XB4BA31

SKU:XB4BA31

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

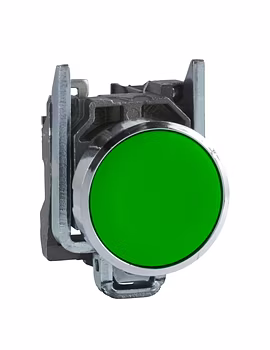

Push button, metal, flush, green, Ø22, spring return, unmarked, 1 NO
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information

    Main
    range of product
    Harmony XB4

    product or component type
    Push-button

    device short name
    XB4

    bezel material
    Chromium plated metal

    fixing collar material
    Zamak

    mounting diameter
    22 mm

    sale per indivisible quantity
    1

    shape of signaling unit head
    Round

    type of operator
    spring return

    operator profile
    Green flush, unmarked

    head type
    Standard

    contacts type and composition
    1 NO

    contact operation
    Slow-break

    connections - terminals
    Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
    Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

    Complementary
    height
    47 mm

    width
    30 mm

    depth
    52 mm

    terminals description ISO n°1
    (13-14)NO

    net weight
    0.08 kg

    resistance to high pressure washer
    7000000 Pa at 55 °C, distance : 0.1 m

    contacts usage
    Standard contacts

    positive opening
    Without

    operating travel
    2.6 mm (NO changing electrical state)
    4.3 mm (total travel)

    operating force
    3.8 N NO changing electrical state

    mechanical durability
    10000000 cycles

    tightening torque
    0.8…1.2 N.m conforming to EN 60947-1

    shape of screw head
    Cross compatible with Philips no 1 screwdriver
    Cross compatible with pozidriv No 1 screwdriver
    Slotted compatible with flat Ø 4 mm screwdriver
    Slotted compatible with flat Ø 5.5 mm screwdriver

    contacts material
    Silver alloy (Ag/Ni)

    short-circuit protection
    10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

    [Ith] conventional free air thermal current
    10 A conforming to EN/IEC 60947-5-1

    [Ui] rated insulation voltage
    600 V (pollution degree 3) conforming to EN/IEC 60947-1

    [Uimp] rated impulse withstand voltage
    6 kV EN/IEC 60947-1

    [Ie] rated operational current
    3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

    electrical durability
    1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

    electrical reliability
    Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4
    Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4

    device presentation
    Complete product

    Environment
    protective treatment
    TH

    ambient air temperature for storage
    -40…70 °C

    ambient air temperature for operation
    -40…70 °C

    overvoltage category
    Class I conforming to IEC 60536

    IP degree of protection
    IP66 conforming to IEC 60529
    IP67
    IP69
    IP69K

    NEMA degree of protection
    NEMA 13
    NEMA 4X

    IK degree of protection
    IK06 conforming to IEC 50102

    standards
    JIS C8201-5-1
    EN/IEC 60947-5-5
    UL 508
    EN/IEC 60947-1
    EN/IEC 60947-5-4
    EN/IEC 60947-5-1
    CSA C22.2 No 14
    JIS C8201-1

    product certifications
    CSA
    RINA
    GL
    BV
    UL listed
    DNV
    LROS (Lloyds register of shipping)

    vibration resistance
    5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

    shock resistance
    30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Packing Units
    Unit Type of Package 1
    PCE

    Number of Units in Package 1
    1

    Package 1 Weight
    79.52 g

    Package 1 Height
    3.4 cm

    Package 1 width
    5.3 cm

    Package 1 Length
    8.8 cm

    Unit Type of Package 2
    CAR

    Number of Units in Package 2
    1

    Package 2 Weight
    78 g

    Package 2 Height
    8.8 cm

    Package 2 width
    3.4 cm

    Package 2 Length
    5.4 cm

    Unit Type of Package 3
    P06

    Number of Units in Package 3
    1200

    Package 3 Weight
    106.816 kg

    Package 3 Height
    75 cm

    Package 3 width
    80 cm

    Package 3 Length
    60 cm

    Offer Sustainability
    Sustainable offer status
    Green Premium product

    REACh free of SVHC
    Yes

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Toxic heavy metal free
    Yes

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
