XPEG110

SKU:XPEG110

Price upon request

  • Product is not available

-
+
Send Enquiry

Minimum Order Quantity1

Accept Small Orders No

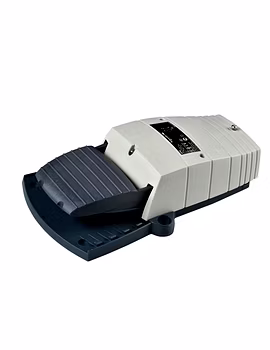

Single foot switch - IP66 - without cover - plastic - grey - 1 NC + 1 NO
Add to Wishlist Remove Wishlist Add to Compare

  • Additional Information

    Main
    range of product
    Harmony XPE

    product or component type
    Foot switch

    material
    Plastic

    foot switch type
    Single foot switch

    device short name
    XPEG

    trigger mechanism
    Without trigger mechanism

    contact operation
    1 step

    contacts type and composition
    1 NC + 1 NO

    colour
    Grey

    Complementary
    positive opening
    With conforming to EN/IEC 60947-5-1 appendix K

    connections - terminals
    Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end
    Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end

    cable entry
    2 plain holes for M20 cable gland

    mechanical durability
    10000000 cycles

    [Ie] rated operational current
    3 A, 240 V, AC-15, A300
    0.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A

    [Ui] rated insulation voltage
    500 V (pollution degree 3) conforming to EN/IEC 60947-1
    500 V (pollution degree 3) conforming to NF C 20-040 group C
    500 V (pollution degree 3) conforming to VDE 0110 group C
    300 V conforming to UL 508
    300 V conforming to CSA C22.2 No 14

    [Uimp] rated impulse withstand voltage
    6 kV EN/IEC 60947-1

    maximum resistance across terminals
    25 MOhm conforming to IEC 60255-7 category 3
    25 MOhm conforming to NF C 93-050 method A

    short-circuit protection
    10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
    10 A cartridge fuse type gG conforming to VDE 0660-200

    rated operational power in W
    10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

    net weight
    0.57 kg

    Environment
    standards
    UL 508
    CSA C22.2 No 14
    EN/IEC 60947-5-1

    product certifications
    UL
    CSA

    protective treatment
    TH

    ambient air temperature for operation
    -25…70 °C

    ambient air temperature for storage
    -40…70 °C

    vibration resistance
    5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

    shock resistance
    30 gn conforming to IEC 60068-2-27

    overvoltage category
    Class II conforming to EN/IEC 61140
    Class II conforming to NF C 20-030

    IP degree of protection
    IP66 conforming to IEC 60529

    Packing Units
    Package 1 Weight
    0.785 kg

    Package 1 Height
    1.100 dm

    Package 1 width
    1.800 dm

    Package 1 Length
    2.850 dm

    Offer Sustainability
    Sustainable offer status
    Green Premium product

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

    Contractual warranty
    Warranty
    18 months
